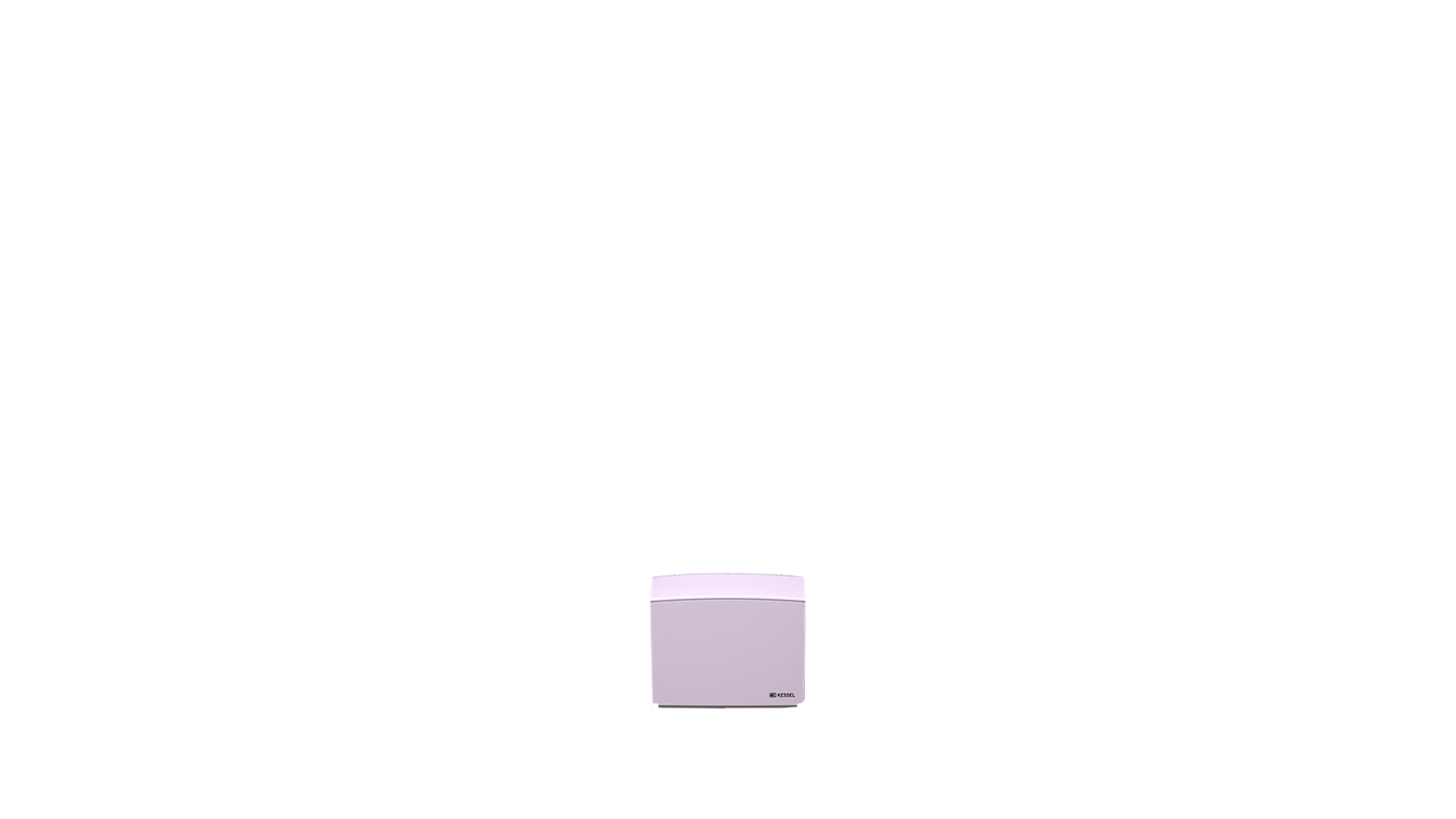

Mini format. Mega strong.
The Minilift S for wastewater without sewage makes everything possible.
Mega talented
But it's got the lot: The Minilift S fits in anywhere due to its small size and impresses with its performance in many areas. The variable inlet and connection options make it a space-saving all-rounder for sewage free wastewater. Where can it play out its strengths? For example, in the following situations:

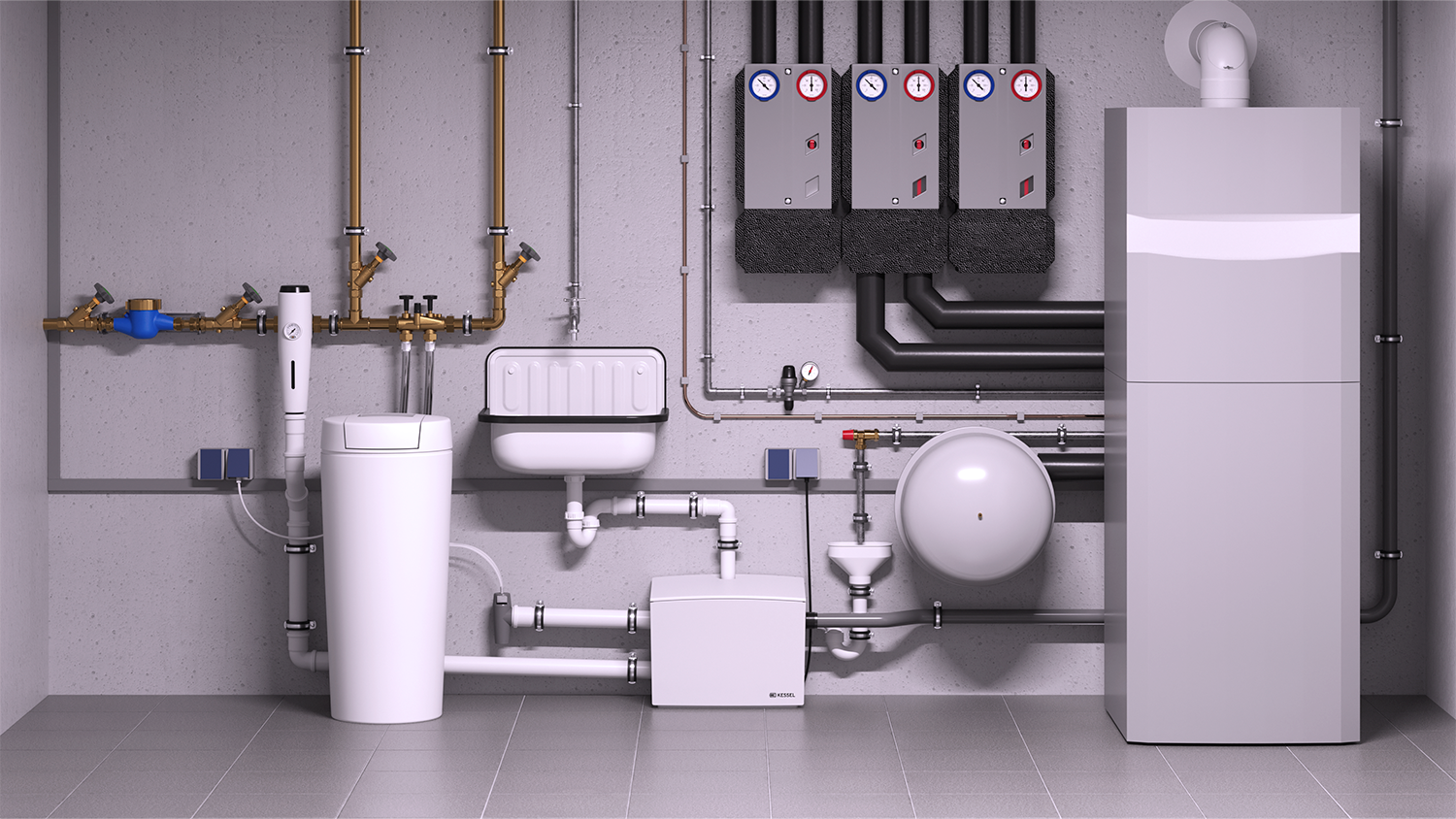

In utility rooms for softening systems, backwash filters or heating systems (version "resistant").

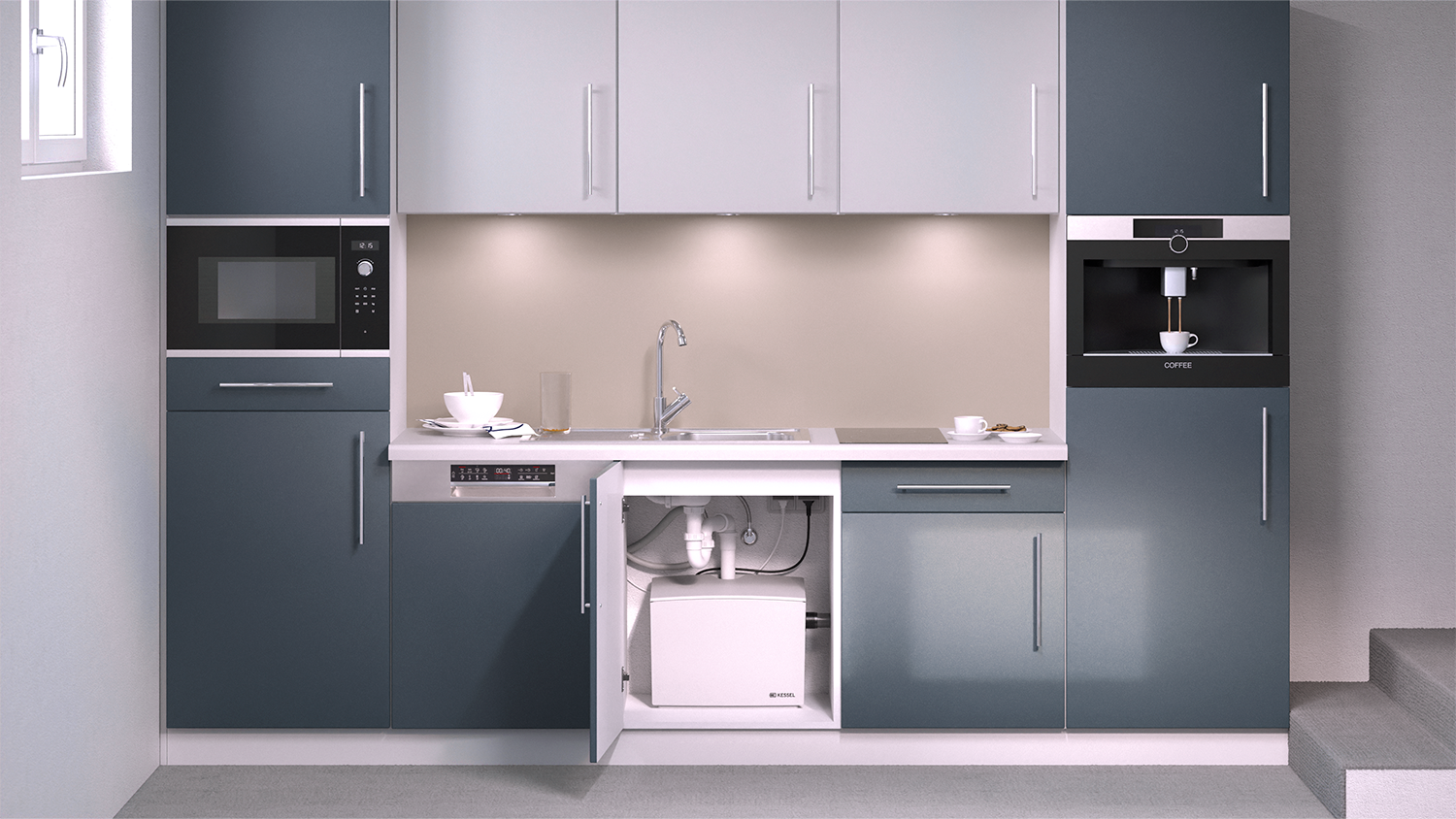

In kitchenettes.

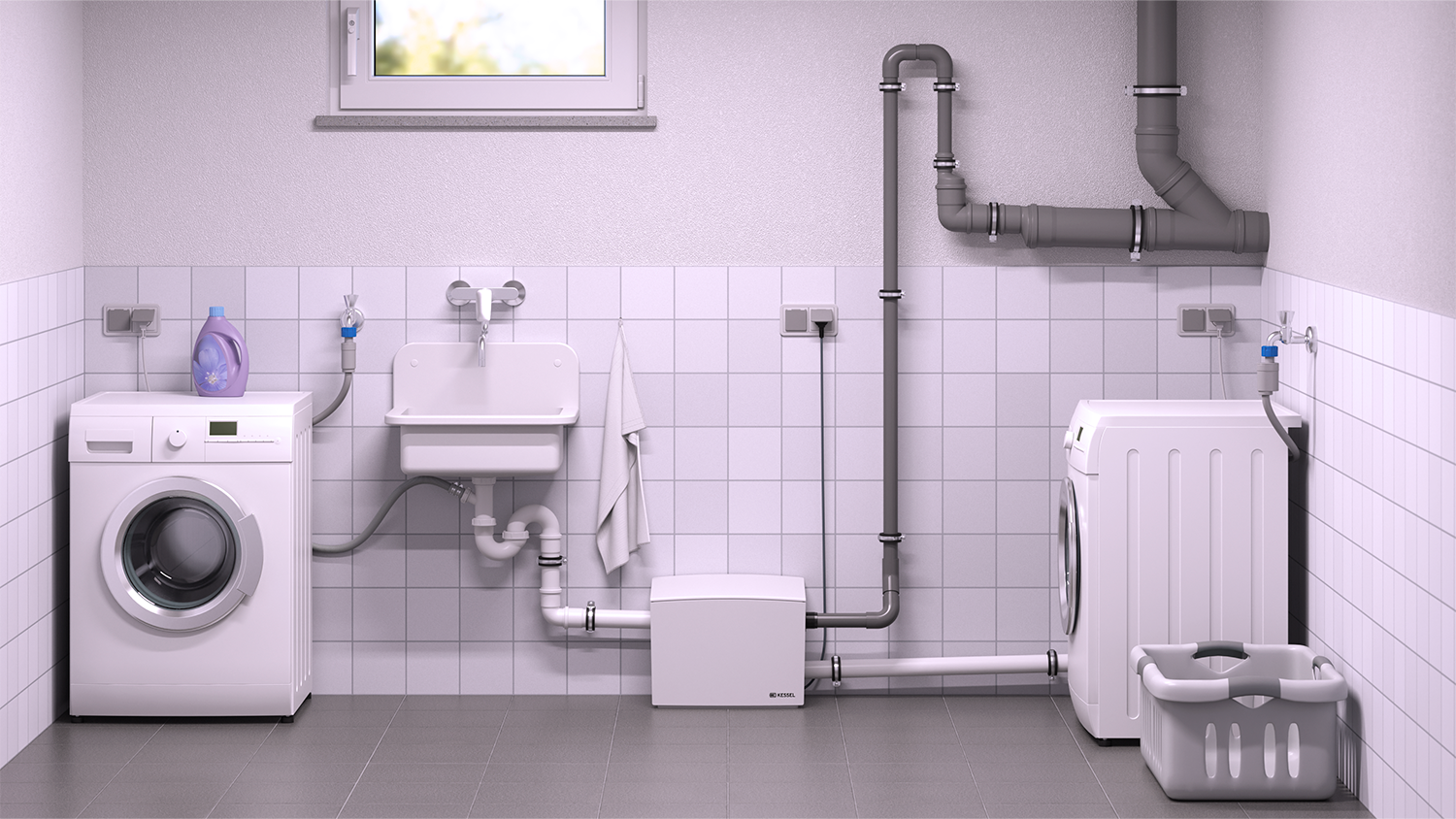

For washing machine and wash basin in laundry rooms.

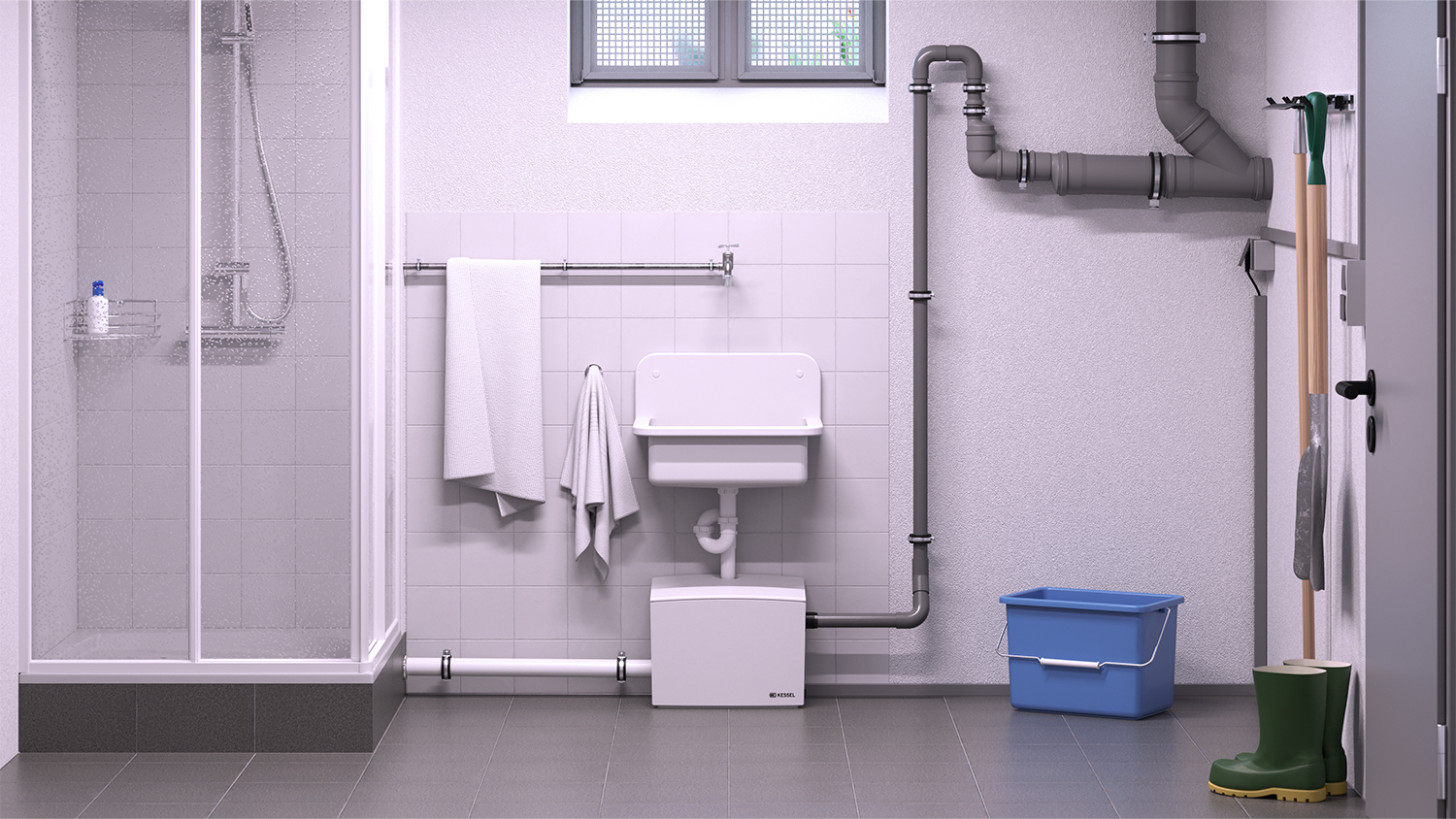

For renovations in bathrooms next to the hobby room or in the workshop.
Mega efficient
The height-adjustable float switch of the Minilift S can be fixed in two different positions. This means that the pumping volume can be adapted to the amount of wastewater generated. The advantage: You can therefore influence the filling level from which the lifting station for restricted use starts to pump.
Mega free
A washbasin, dishwasher or shower: Despite its small size, the Minilift S can handle the lot. There are five inlet connection options available, located on the sides and on the top. The pressure pipe can be installed either on the right or left side.
- Five inlets
- Choice of pressure pipe connection
- Individually adaptable to local conditions
Mega strong
A choice of three different pump capacities is available depending on how much power is required. These are also available in versions that are resistant to hot water and brine. This means that the Minilift S can be configured in such a way that it perfectly meets the requirements placed on it by its application.
KTP 300
For sewage free wastewater
Art. no. 28 561

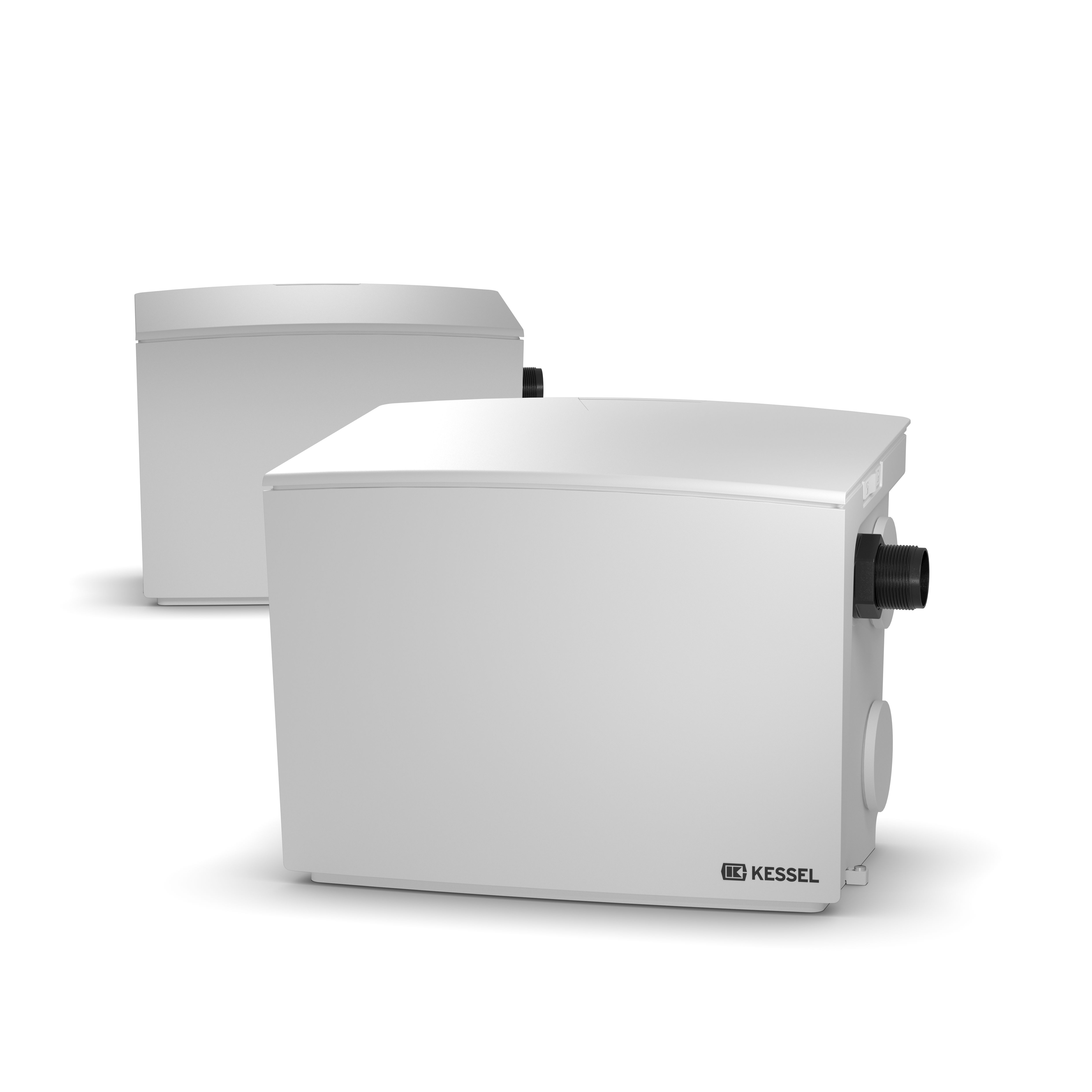

KTP 300 resistant
Resistant to:
- Saline media
- Wastewater from softening units
- Wastewater containing condensate from heating systems
Art. no. 28 561C
Max. flow rate: 8 m3/h
Max. pumping height: 6 m
Operating voltage: 230 V
|Nominal frequency: 50 Hz
Operating mode: S1
Power P1: 0.34 kW
Power P2: 0.21 kW
RPM: 2,800 rpm
Pumping capacity
GTF 500
For sewage free wastewater
Art. no. 28 562
GTF 500 resistant
Resistant to:
- Saline media
- Wastewater from softening units
- Wastewater containing condensate from heating systems
Art. no. 28 562C
Max. flow rate: 10 m3/h
Max. pumping height: 8 m
Operating voltage: 230 V
|Nominal frequency: 50 Hz
Operating mode: S1
Power P1: 0.6 kW
Power P2: 0.36 kW
RPM: 2,800 rpm
Pumping capacity
GTF 1000
For sewage free wastewater
Art. no. 28 563
GTF 1000 resistant
Resistant to:
- Saline media
- Wastewater from softening units
- Wastewater containing condensate from heating systems
Art. no. 28 563C
Max. flow rate: 14.5 m3/h
Max. pumping height: 10 m
Operating voltage: 230 V
Nominal frequency: 50 Hz
Operating mode: S3
Power P1: 1.27 kW
Power P2: 0.73 kW
RPM: 2,800 rpm
Pumping capacity

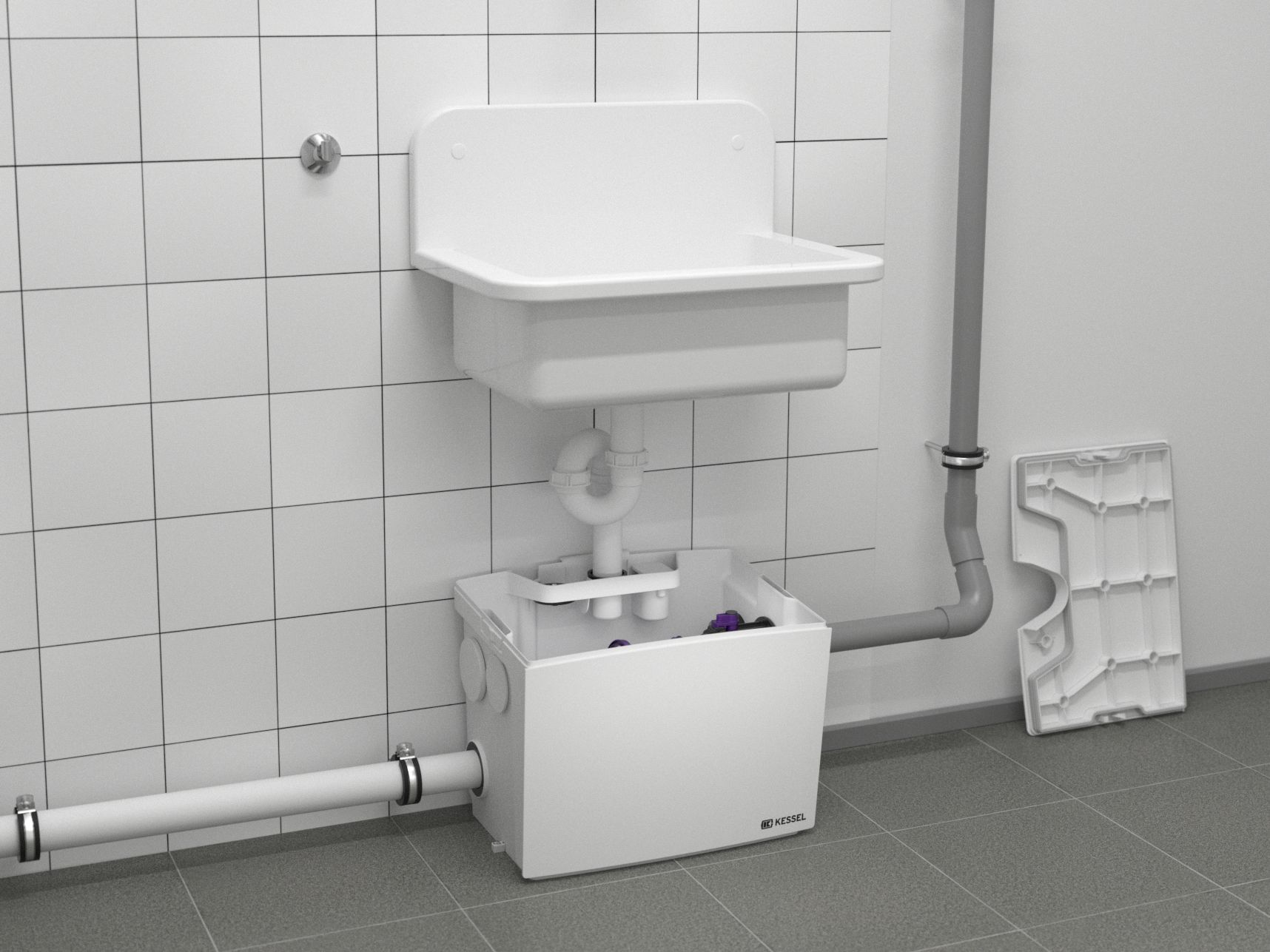

Mega easy
Installing the Minilift S is both easy and convenient. The plug-in ready delivery and pre-assembled elements save time and therefore costs during installation.
- Plug-in ready pump
- Backflow preventer on the pressure side is integrated at the factory
- Cover with fixed seal
- Quick and easy assembly of all components without tools and drill holes
Mega relaxed
Purchasing and installation are one thing, maintenance and operation are another. Thanks to sophisticated locking devices and clever mechanisms, it is really easy to keep the Minilift S in top condition.
- Lock for opening the cover without tools
- One-handed closure for pump and backflow preventer
- Easy access to the tank without having to disassemble components or pipes
- Easy cleaning of all components is possible
